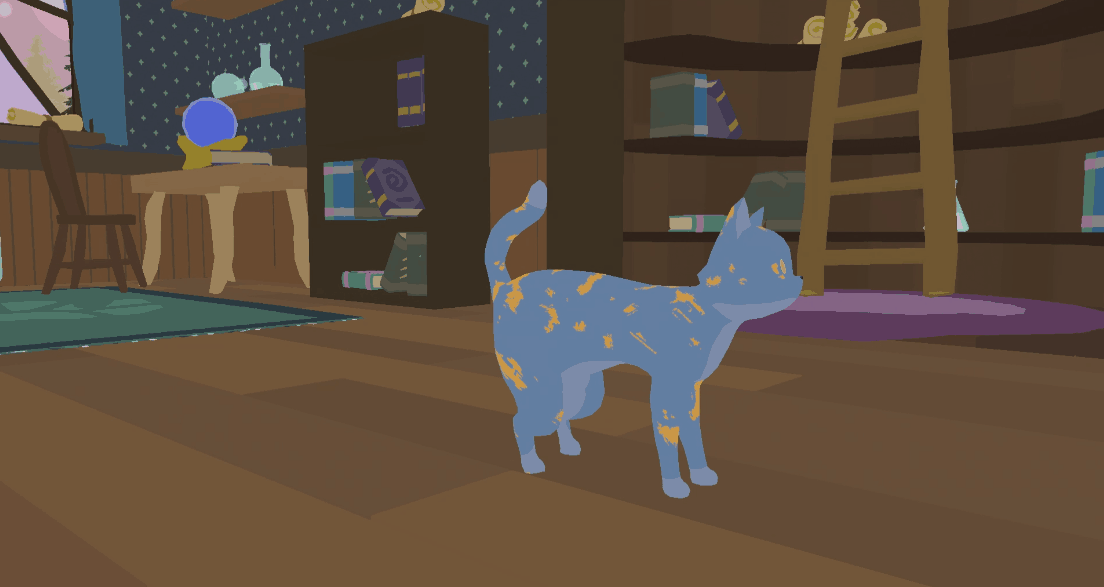

Cat Body Kinematics

Process to create smooth body rotations while moving, used in Animation Blueprints for quadruped player characters

Steps used to create this effect.
-Create a Rotation variable
-Get the “Get Last Update Rotation” from the “Character Movement” (for the cats only the Yaw is used)
-Set the variable to this Rotation so that the variable can be called within the Anim Graph
-Takes rotation and multiply the negative
-Scale rotation based on the number of bones rotated (Eg. the cats have two bones rotating so this is scaled by .50)

Anim BP Graph for blending rotations on top of the movement animation.

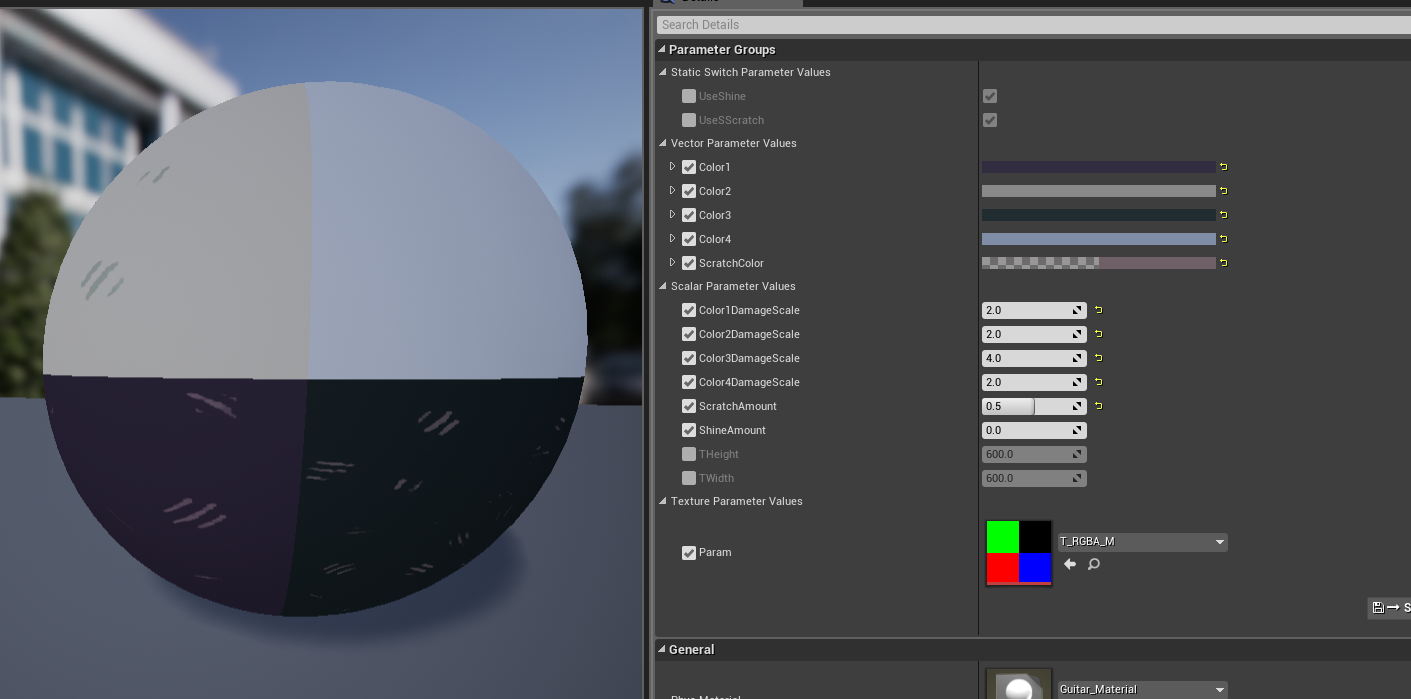

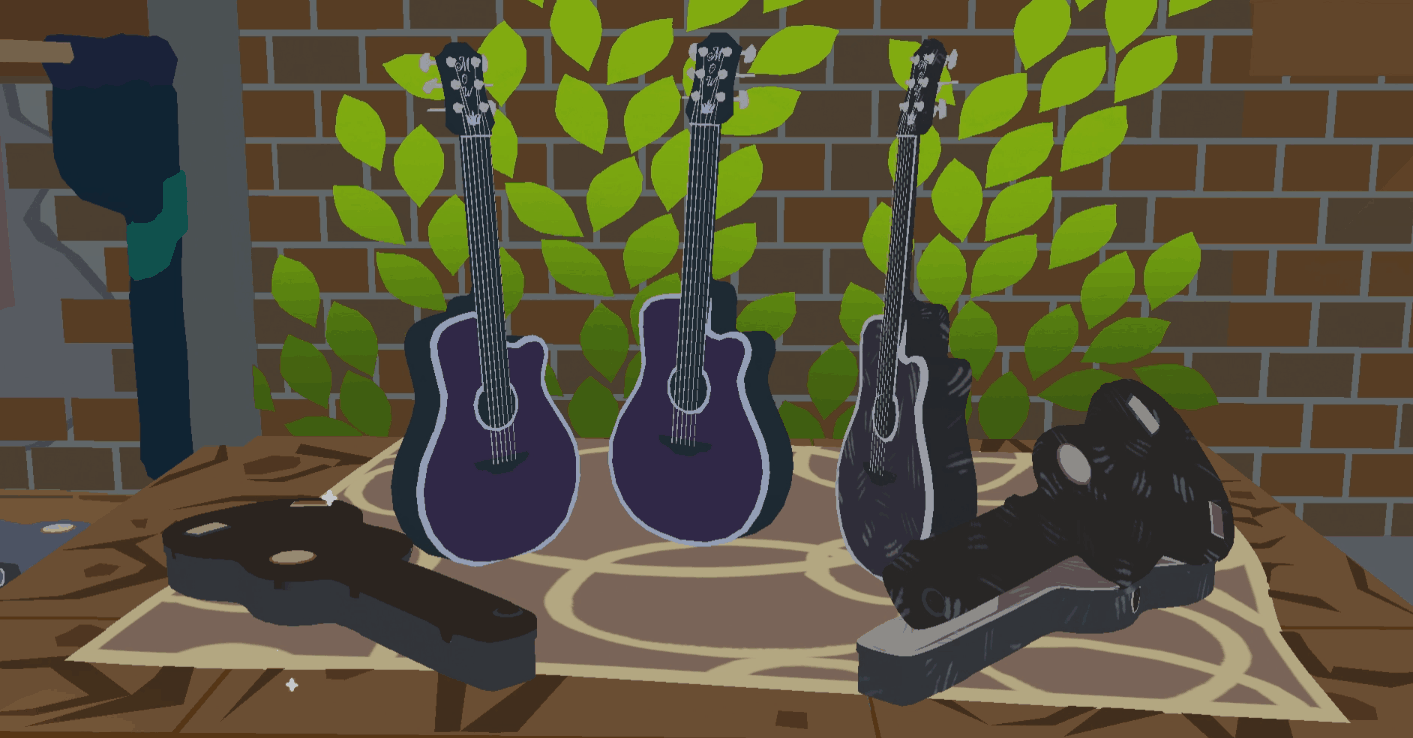

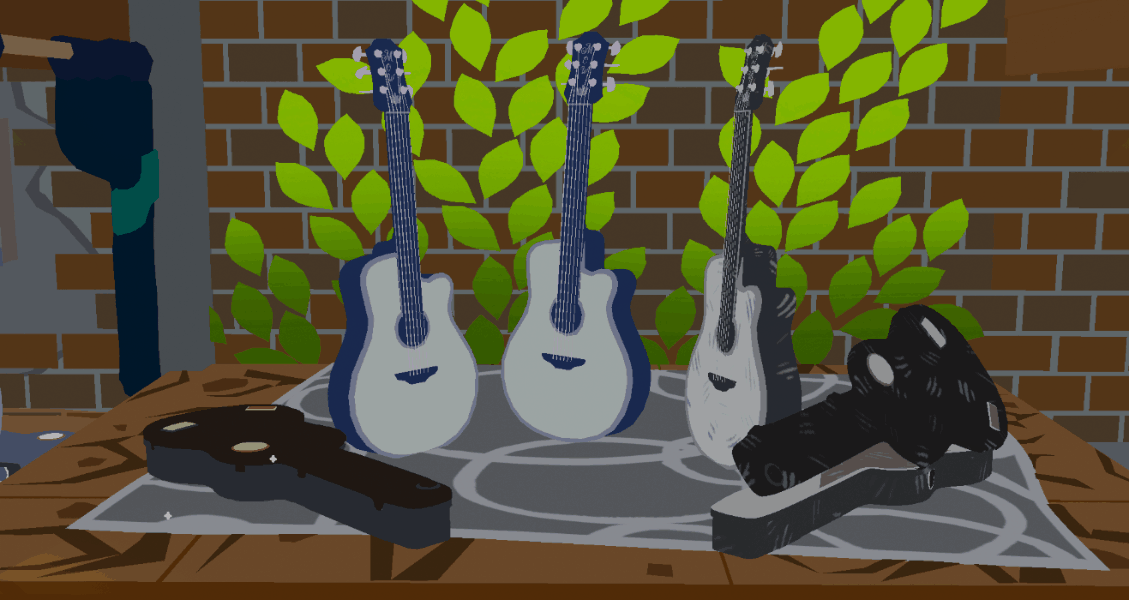

Object Master Material

Master material instanced for most objects and background assets.

Material is a grid of 4 quadrants where colors are set by instances in engine. Grid is created by a 2px by 2 px texture, using RGB and Black to separate the 4 quadrants

Mesh UV’s are set to the quadrants to allow for quick authoring and adjustments in editor.

Material Blueprint Graph
-Includes Custom Material Function for scaling and overlaying cat scratches

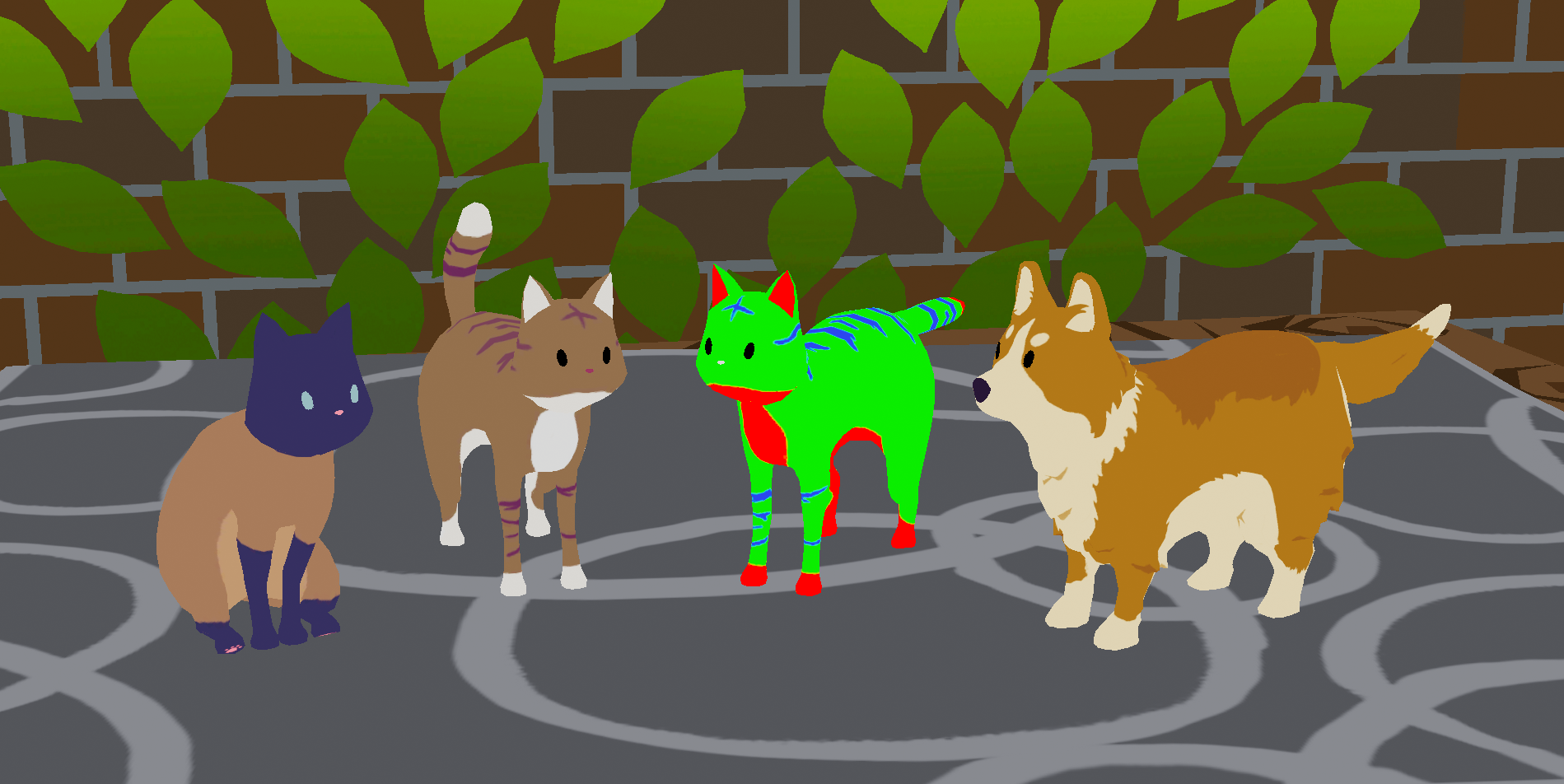

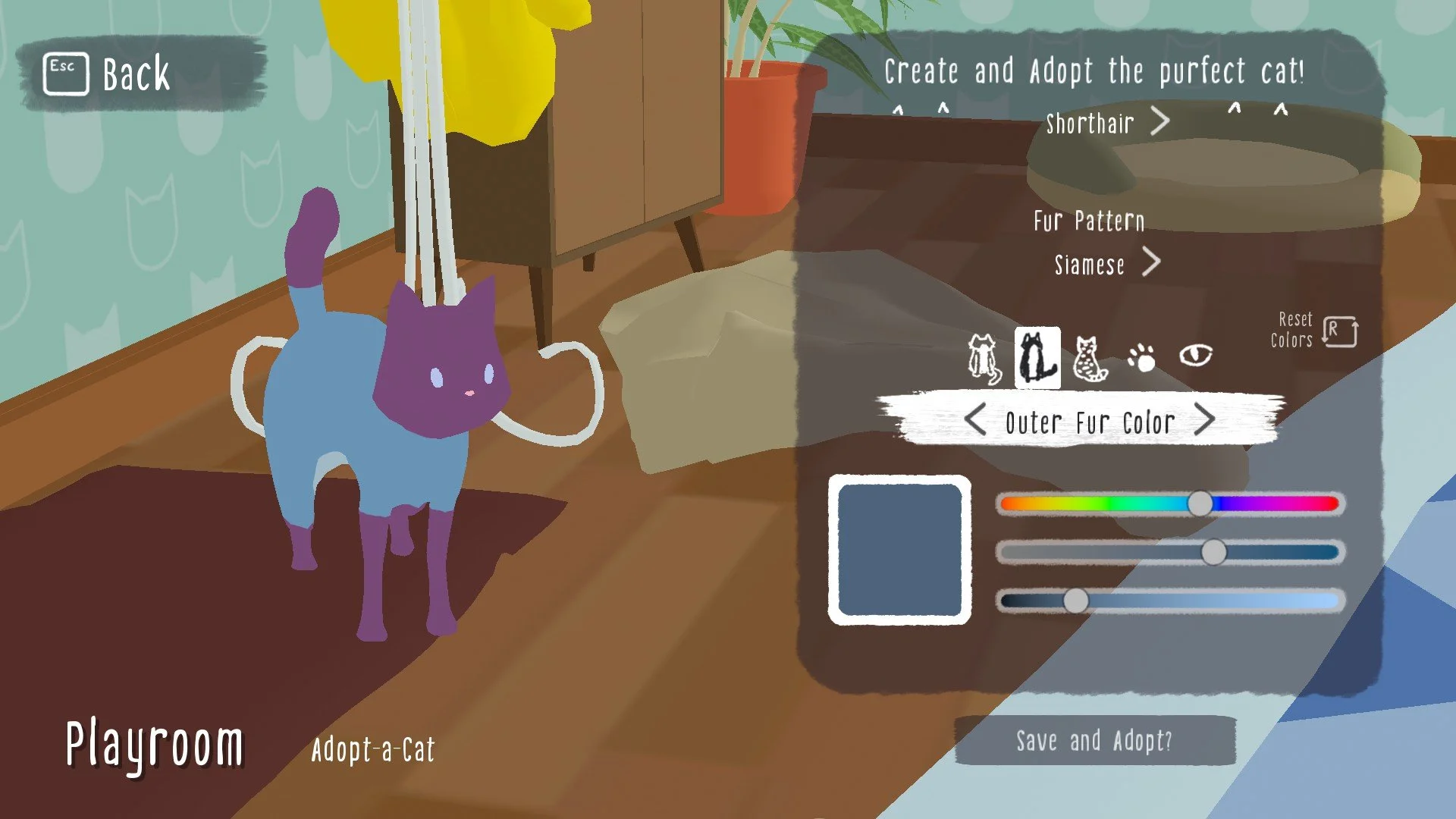

Cat Master Materials

Master material instanced for all playable characters in Fisti-Fluffs

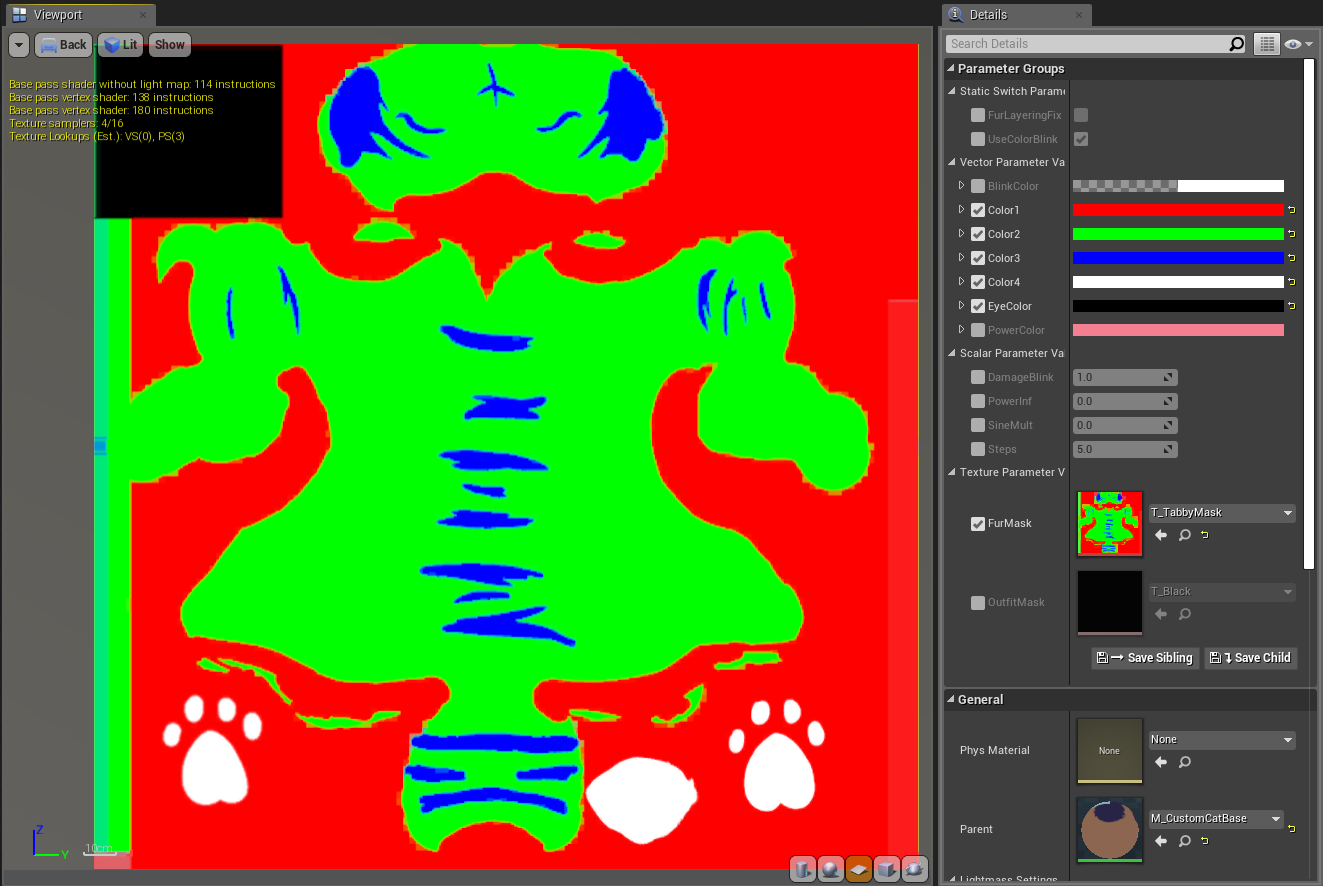

Simple RGB channel masks for dynamic and custom character use.

Mesh UV’s are set to the quadrants to allow for quick authoring and adjustments in editor.

Additional functions for:
- Damage blink
- Power up glow/fresnel
- Masking mesh while wearing outfits

Material Blueprint Graph

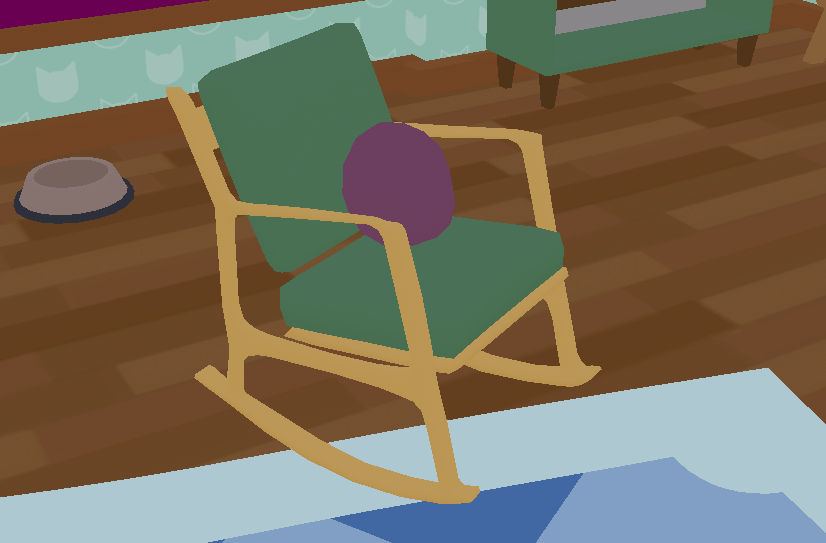

Bayer Matrix Dither

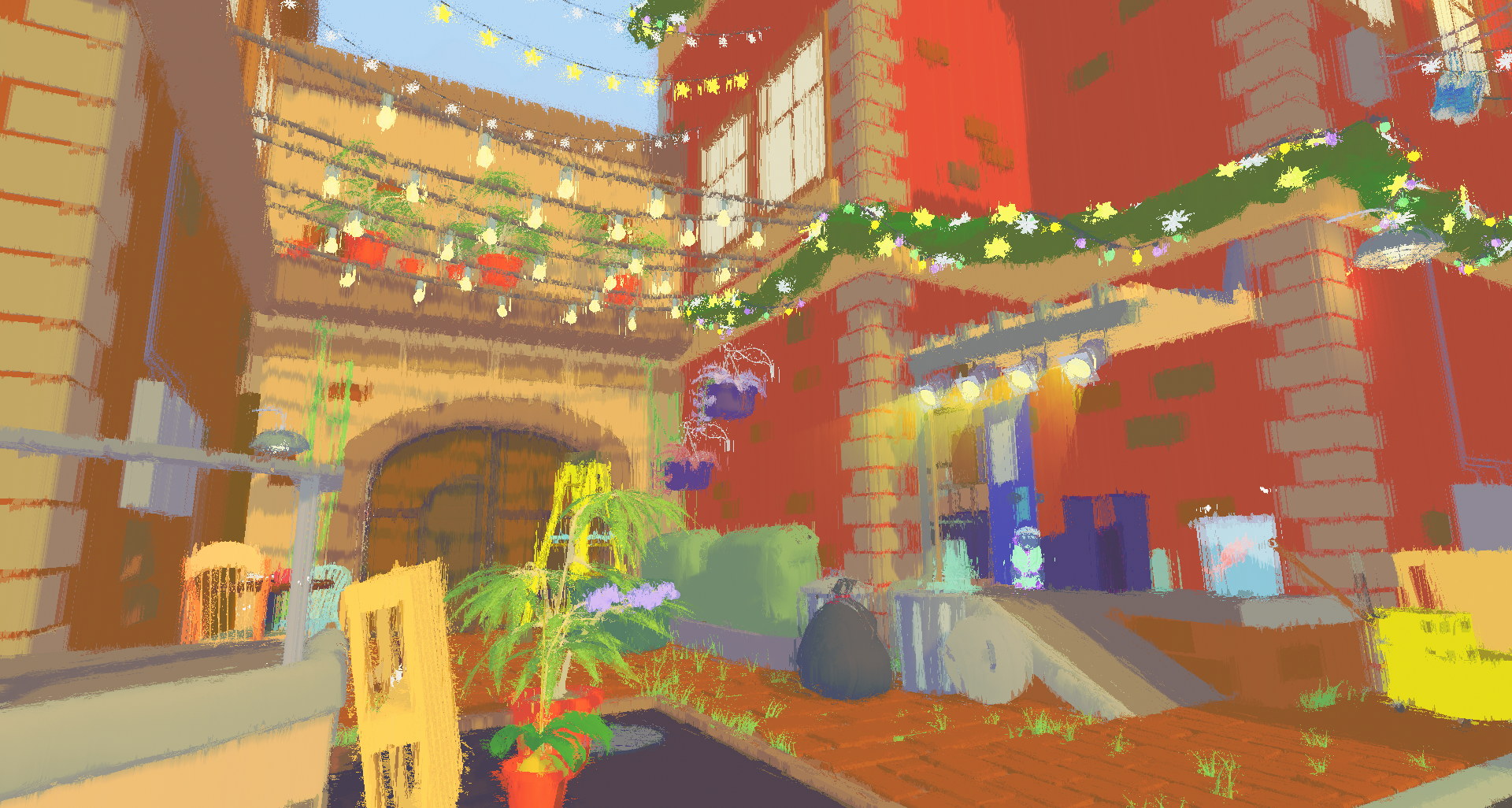

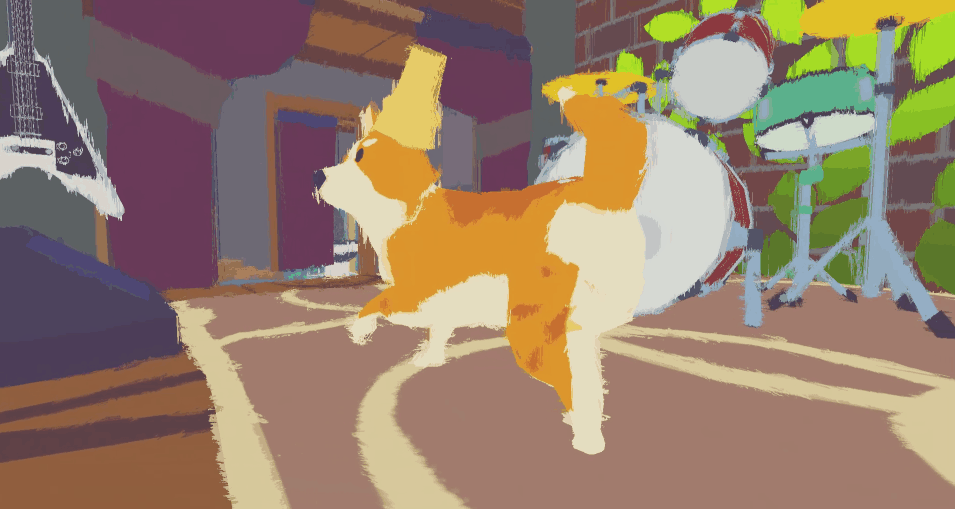

Stylized Paint Shader
